In industries like pharmaceuticals, nutraceuticals, and food manufacturing, gelatin melting tanks (often called gelatin tanks) are pivotal for transforming raw gelatin into homogeneous solutions ready for encapsulation, coating, or molding. With large-scale production demands, efficiency isn’t just about speed—it’s about precision, energy conservation, and seamless integration into automated workflows. This article dissects the engineering principles, operational parameters, and cutting-edge innovations that define high-performance gelatin tanks, with insights into how Sinagel’s solutions align with industrial needs.
An efficient gelatin tank must excel in four core areas:
Rapid & Uniform Heating: Ensures consistent gelatin viscosity.
Bubble-Free Mixing: Eliminates air pockets that compromise product integrity.
Scalable Automation: Adapts to batch sizes from 100L to 10,000L.
Regulatory Compliance: Meets FDA, GMP, and ISO standards for hygiene and traceability.

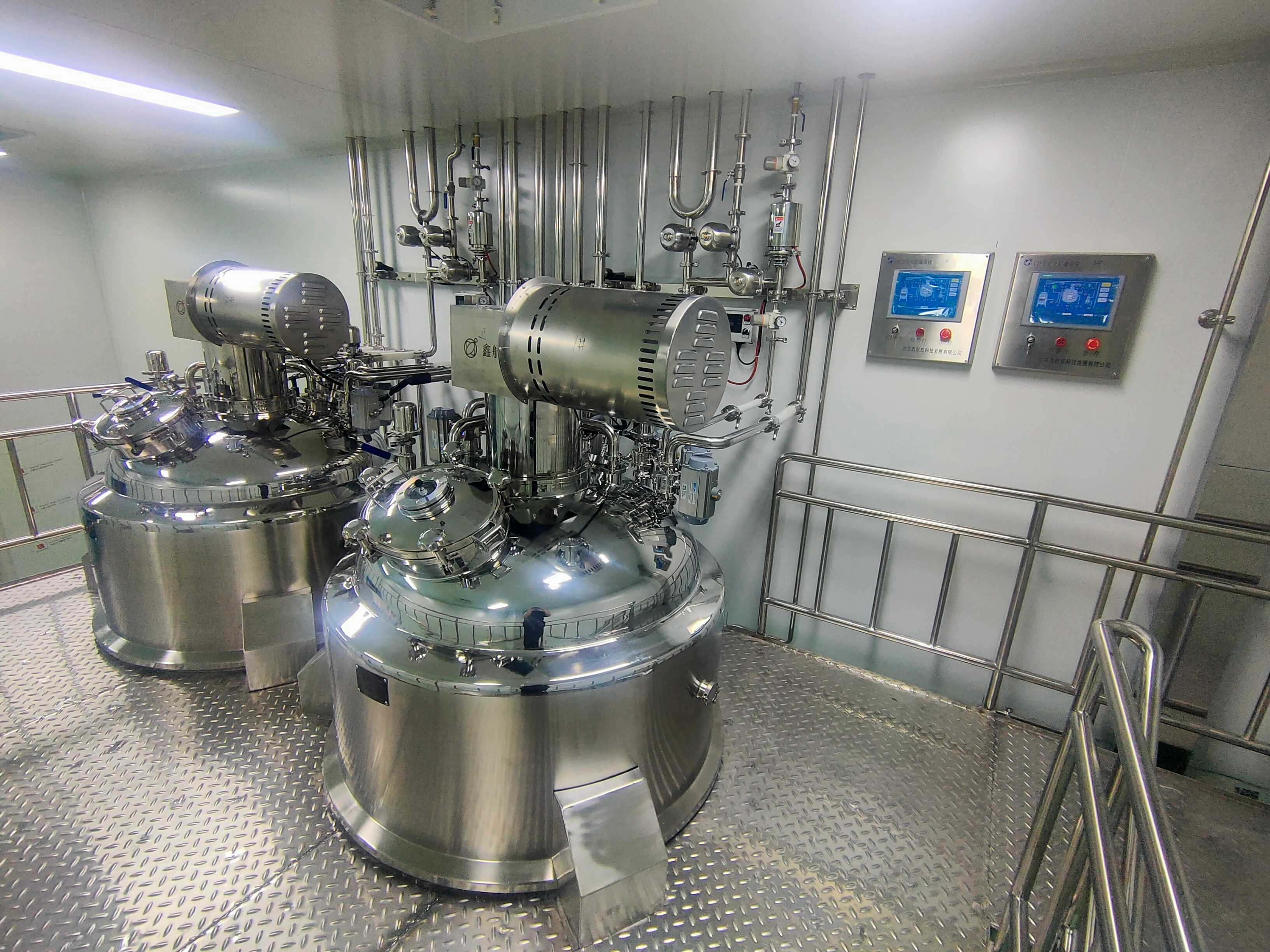

Sinagel’s gelatin melting systems, like the HJG Series and CIP Pro models, are engineered to optimize these factors. Below, we break down their design, performance metrics, and alignment with modern manufacturing trends.
Gelatin’s viscosity is highly temperature-sensitive. A deviation of just 2–3°C can lead to under-hydrated powder or over-thinned solutions, both of which disrupt capsule formation. Sinagel’s tanks address this through:
Multi-Zone Water Bath Heating: Unlike single-coil systems, Sinagel’s HJG tanks use partitioned water jackets to apply heat evenly across the tank’s surface, reducing cold spots.
Steam Injection Assist: For high-capacity models (1,000L+), steam injection accelerates heating by 30–40% compared to conventional methods.
Real-Time Thermal Feedback: Integrated PT100 sensors adjust heating output dynamically, maintaining ±0.5°C accuracy.
| Heating Method | Avg. Heating Time (500L Batch) | Temp. Accuracy | Energy Efficiency |
|---|---|---|---|
| Single-Coil Electric | 45–60 mins | ±2°C | 55–65% |
| Multi-Zone Water Bath | 25–35 mins | ±1°C | 75–85% |
| Steam-Assisted Hybrid | 15–20 mins | ±0.5°C | 85–90% |
Air bubbles in gelatin solutions are a silent productivity killer. They cause defects in softgel capsules and increase rejection rates. Sinagel’s approach combines:
Variable-Frequency Helical Mixers: These generate laminar (non-turbulent) flow, preventing gelatin shear degradation while ensuring homogeneous mixing.
Vacuum Degassing Chambers: Integrated vacuum pumps reduce bubble content to <0.1% volume in 8–12 minutes.
Ultrasonic Cavitation: High-frequency sound waves disrupt micro-bubbles, further enhancing solution clarity.
Performance Comparison:
| Mixer Type | Mixing Time (500L) | Bubble Content Post-Mixing | Gelatin Shear Loss |
|---|---|---|---|
| Paddle Mixer | 40–50 mins | 2–3% | 8–12% |
| Helical Ribbon | 25–30 mins | 0.5–1% | 3–5% |
| Helical + Ultrasonic | 15–20 mins | <0.1% | 1–2% |
Modern gelatin tanks are no longer standalone units—they’re nodes in smart factories. Sinagel’s systems leverage:
PLC-Based Control Panels: Operators can program multi-stage melting cycles (e.g., pre-hydration, heat ramping, degassing) with one-touch commands.
IoT Connectivity: Real-time data on temperature, viscosity, and pH syncs with MES/ERP systems for predictive quality control.
AI-Driven Optimization: Machine learning algorithms analyze historical batch data to recommend efficiency improvements (e.g., adjusting mixing RPM for specific gelatin grades).
Example Workflow:
Auto-Powder Dosing: Load gelatin via screw conveyor with ±0.5% weight accuracy.
Smart Hydration: Water is added proportionally based on real-time viscosity readings.
Self-Diagnosis: Sensors detect anomalies (e.g., motor overload, temp. drift) and trigger alerts.
For pharmaceutical and food producers, cleaning cycles can consume 20–30% of operational time. Sinagel’s CIP (Clean-in-Place) Pro system tackles this with:
360° Spray Balls: High-pressure nozzles cover 98% of the tank’s interior, reducing manual scrubbing.
Steam Sterilization: SIP (Steam-in-Place) functions sanitize tanks without chemical detergents.
Automated Audit Logs: Every cleaning cycle is timestamped and stored digitally for regulatory reviews.
Energy recovery systems, such as heat exchangers that reuse waste thermal energy, are cutting operational costs by 25–30%. Sinagel’s HJG tanks now feature regenerative heating loops that pre-warm incoming water using residual heat.
With personalized nutraceuticals on the rise, manufacturers need tanks that handle small R&D batches (50–100L) and large-scale production (5,000L+) equally well. Modular tanks with stackable chambers or expandable jackets are gaining traction.
Plant-based gelatin alternatives (e.g., agar, pectin) often stick to stainless steel. Sinagel’s ceramic-coated tanks and PEEK polymer mixers prevent adhesion, reducing clean-up time by 40%.
Augmented reality (AR) tools allow technicians to troubleshoot tanks remotely. By scanning a QR code on Sinagel’s CIP Pro units, engineers access 3D schematics and repair guides overlaid on their smartphone cameras.
| Model | HJG-500 | HJG-1000 | CIP Pro Series |
|---|---|---|---|
| Capacity | 500L | 1000L | 200–2000L |
| Heating Time | 25 mins | 18 mins | 12–15 mins |
| Mixer Type | Helical Ribbon | Helical + Steam | Helical + Ultrasonic |
| Max RPM | 60 | 80 | 100 |
| Degassing | Vacuum Pump | Vacuum + Steam | Vacuum + Ultrasonic |
| CIP/SIP Automation | Semi-Auto | Semi-Auto | Full Auto |
| Energy Efficiency | 80% | 85% | 92% |
| Compliance | FDA, CE | GMP, ISO 9001 | FDA, GMP, EU |
Key Advantages:
CIP Pro Series: Achieves a 50% faster cycle time than industry averages, thanks to dual heating sources and ultrasonic degassing.
HJG-1000: Ideal for food manufacturers needing high throughput, with steam-assisted heating reducing energy costs by 18%.
Priorities: Sterility, compliance, batch traceability.
Recommended Model: CIP Pro Series with full SIP automation and electronic batch records compliant with 21 CFR Part 11.
Priorities: High-volume output, easy cleaning, allergen control.
Recommended Model: HJG-1000 with steam-jacket heating and semi-automated CIP cycles.
Priorities: Flexibility for diverse formulations (e.g., CBD gels, collagen peptides).
Recommended Model: Modular CIP Pro units with additive injection ports and ceramic-lined tanks.
Prioritize Upgradability: Choose tanks compatible with IoT retrofits or software updates.
Evaluate Lifecycle Costs: A slightly pricier tank with 90% energy efficiency may save $15,000+/year in utilities.
Demand Vendor Expertise: Partner with suppliers offering onsite training and predictive maintenance plans.
Efficiency in gelatin melting tanks isn’t a single feature—it’s the synergy of precision heating, intelligent automation, and sustainable design. Sinagel’s HJG and CIP Pro systems exemplify this balance, offering pharmaceutical and food manufacturers a competitive edge through reduced cycle times, lower waste, and seamless compliance. As industries pivot toward greener, smarter production, investing in gelatin tanks that align with both current needs and future trends isn’t just strategic; it’s essential for staying ahead in a rapidly evolving market. Whether scaling up for mass production or innovating with novel formulations, the right gelatin tank is the linchpin of operational excellence.
