The encapsulation process is only as reliable as the gel mass fed into it. Poorly executed softgel gelatin preparation leads directly to micro-bubbles, inconsistent ribbon thickness, and thermal degradation. These critical flaws directly impact your final batch yield and cause costly downstream downtime.
A high-performance gelatin melting system serves as your essential first line of defense in softgel manufacturing. It tightly controls hydration, temperature, and deaeration long before the mass ever reaches the rotary die. You cannot simply mix ingredients and hope for a perfect capsule shell.
This article evaluates the technical and operational impacts of modern melting systems. We will explore key components, analyze automation benefits, and detail essential rollout requirements. Production managers and procurement teams will learn exactly how to make informed equipment upgrade decisions.
Yield Protection: Precise temperature control (avoiding prolonged heat exposure) prevents gelatin hydrolysis and viscosity drop.
Operational Efficiency: Transitioning to an automatic gelatin melting system reduces manual weighing errors and automates CIP (Clean-in-Place) validation.
Defect Reduction: Integrated vacuum deaeration drastically cuts down micro-bubbles, solving root causes of capsule leaking and seam failures.
Process Standardization: Modern PLC-driven tanks allow for "One-for-All" recipe programming, ensuring batch-to-batch consistency regardless of operator turnover.
Variations in raw material handling directly impact your bottom line. You might notice leaking capsules or weak seams on the inspection belt. These defects usually stem from early preparation errors rather than the encapsulation machine itself. When operators fail to control the initial hydration phase, the entire production run suffers.
Thermal degradation poses a massive risk to product quality. Manufacturers typically melt gelatin between 60°C and 95°C depending on the formula. Afterward, they must hold the mass perfectly steady at 57°C to 60°C. Exceeding these optimal temperatures reduces gel strength significantly. Holding the mass at high heat for too long causes gelatin hydrolysis. The polymer chains break down, and viscosity drops rapidly. The resulting gel ribbon becomes brittle, tearing easily during encapsulation.
Next, consider the foaming bottleneck. Powder hydration naturally traps air. Excessive micro-bubbles in the gel mass weaken capsule seams because air pockets replace solid material at the sealing edge. They also demand extended, energy-draining vacuum times to resolve. If you fail to remove this trapped air, operators will struggle to maintain wedge pressure during encapsulation. Weak seams lead inevitably to leaking softgels and entirely rejected batches.
You must view the melting infrastructure as a yield-protection asset. It operates far beyond the capabilities of a basic industrial mixer. Proper preparation prevents downstream encapsulation downtime. It secures your production output and fiercely protects your raw material investments from unnecessary waste.

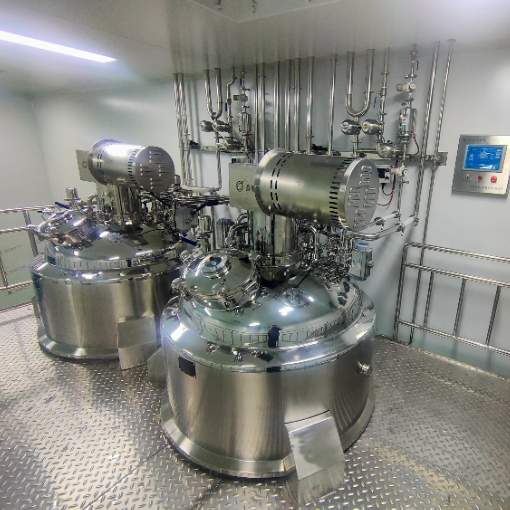

To understand process control, we must map the core components of a commercial-grade gelatin melting tank to specific production outcomes. Each engineered part plays a precise, non-negotiable role in creating a flawless gel mass.
Multi-layer stainless steel construction ensures uniform heat distribution across the inner vessel. This jacket usually contains a water or thermal oil bath. Specialized stirring paddles typically run at a deliberate 29 to 36 rpm. This specific speed range is crucial for quality control. It mixes the viscous mass thoroughly without causing harmful shear stress. High shear forces physically damage the delicate gelatin polymer structure, ruining its elasticity.
A robust vacuum system removes trapped air during the intense hydration phase. When dry powder meets water, thousands of tiny bubbles form instantly. Pulling a deep vacuum forces these micro-bubbles out of the heavy liquid. The mechanical action of the slow-moving paddles constantly brings trapped air to the surface. This continuous process ensures a clear, structurally sound gel mass ready for rolling.
Advanced control systems tie the physical components together. Modern tanks rely on sophisticated PLC control cabinets. Proportional valves regulate thermal energy exactly, eliminating temperature hysteresis. Hot water circulation systems maintain jacket temperatures without dangerous heat spikes. You get precise, repeatable results every single time you initiate a batch.
Best Practices and Common Mistakes
Best Practice: Always calibrate temperature sensors monthly. Hidden thermal degradation occurs slowly and destroys batch yields before you notice the hardware drift.
Common Mistake: Running agitation paddles above 40 rpm. This mistake often folds more air into the mixture than the vacuum system can efficiently remove.
We must compare legacy manual processes against modern automation. A strict "Pain Point vs. Solution" framework helps evaluate these options clearly. An automatic gelatin melting system transforms raw material handling from a guessing game into a predictable science.
Manual processes are notoriously labor-intensive. Operators manually measure powder and water using external scales. They dump ingredients by hand. This creates a high risk of batch inconsistency and recipe deviation.
Automatic systems utilize online precision weighing via integrated load cells. Automated dosing standardizes water-to-gelatin ratios perfectly. The industry standard typically ranges from 0.7 to 1.3 w/w. Automation ensures you hit this exact ratio flawlessly every shift, removing human error entirely.
Manual systems rely heavily on reactive adjustments. Operators observe the tank thermometer and turn manual steam valves. This delayed reaction often leads to blocked transfer pipes or severe mass over-heating.
Automatic systems use intelligent proportional valves to maintain constant temperatures. Automated vacuum systems prevent mass overflow by sensing foam levels. They significantly reduce overall processing time by managing pressure curves dynamically without constant human supervision.
Manual cleaning requires extensive facility downtime. Operators must scrub heavy stainless steel tanks by hand. This difficult task introduces a serious risk of cross-contamination between distinct product runs.

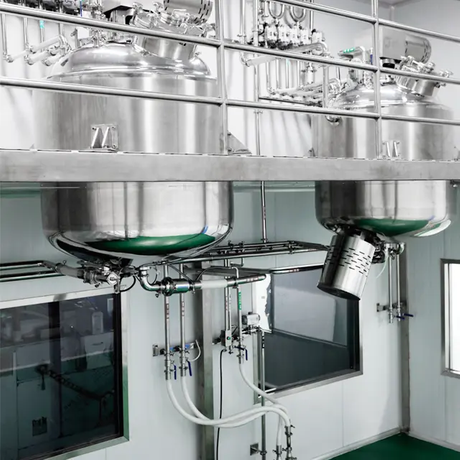

Automatic systems feature fully integrated Clean-in-Place (CIP) technology. Real-time conductivity detection verifies rinse water purity at a molecular level. You get verifiable, audit-ready cleaning records effortlessly printed or stored on your network.
System Comparison Summary
Process Area | Manual Operations (Pain Points) | Automated Systems (Solutions) |
|---|---|---|
Weighing & Feeding | High labor cost; prone to human measurement error. | Precision online weighing (maintains 0.7-1.3 w/w ratio). |
Thermal Control | Reactive adjustments; high risk of polymer over-heating. | Proportional valves for exact, continuous temperature hold. |
Vacuum Deaeration | Visual monitoring required; frequent foam overflow. | Automated pressure curves prevent bubbling over entirely. |
CIP Cleaning | Long downtime; severe cross-contamination risks. | Conductivity sensors guarantee audit-ready, spotless cleaning. |
Buyers need actionable, measurable metrics when evaluating different vendors. You must look far beyond basic liquid capacity. Focus intensely on parameters directly impacting your daily production stability and product versatility.
Your equipment must accommodate standard animal-based gelatin effortlessly. However, the global market increasingly demands plant-based alternatives like tapioca or carrageenan blends. Plant-based materials require significantly higher processing temperatures. They need entirely different thermal handling profiles to hydrate correctly. Ensure the heating jackets and PLC software can sustain these higher thresholds safely without stressing the mechanical seals.
You must align the tank capacity precisely with your encapsulation line output. A 50L pilot scale tank works perfectly for R&D labs. Commercial runs, however, demand 1000L+ capacities. Calculate your rotary die consumption rate accurately. Size the melting tank to prevent idle wait times between batches, ensuring your production line never stops hungry for gel mass.
Strict regulatory compliance remains non-negotiable in pharmaceutical and nutraceutical manufacturing. Look for systems offering continuous, secure data recording. You need immutable logs for temperature, vacuum pressure, and stirring speed. This data directly supports FDA 21 CFR Part 11 compliance audits. It also guarantees complete batch traceability if unexpected quality issues arise months later.
Installing a new melting system introduces several unspoken challenges. You must prepare your physical facility thoroughly before the equipment ever arrives on site. Proper infrastructural planning prevents costly installation delays and integration failures.
Buyers frequently underestimate prerequisite utility infrastructure. Modern tanks require dedicated industrial hot water systems to function optimally. You also need heavily filtered, clean compressed air to operate pneumatic valves. Adequate vacuum pump capacity is absolutely critical. If your central house vacuum is weak, the crucial deaeration phase will fail completely.
Spatial planning matters immensely on the production floor. If you use mobile transfer tanks, ensure perfectly smooth floors for the universal wheels. Check your overhead clearances carefully. Maintenance teams need ample room to access heavy flanges and hoist agitator motors. Tight, cramped spaces lead directly to poor maintenance compliance and eventual equipment failure.
Automated systems definitely reduce raw physical labor. However, they require entirely different technical skill sets. You must actively upskill your maintenance staff. They need to manage PLC troubleshooting confidently. They must understand precise sensor calibration procedures. A highly automated tank becomes useless if operators cannot navigate the HMI screen effectively.
Essential Site Preparation Checklist
Audit your current boiler capacity to ensure it handles peak hot water demand during the melting phase.
Verify structural floor load ratings for 1000L+ water-filled stainless steel tanks.
Map out heated piping routes to avoid sharp bends that cause viscosity drops before encapsulation.
Schedule mandatory, vendor-led PLC training for at least two senior maintenance technicians.
A high-quality melting system acts as a core strategic investment for your facility. It directly improves batch consistency, raw material yield, and overall encapsulation efficiency. Do not treat this equipment as a simple secondary accessory to the rotary die.
Take immediate action to evaluate your current setup. First, audit your current gel mass rejection rates. High defect numbers usually point to early preparation failures. Second, review your utility infrastructure to ensure it actually supports modern automation. Finally, request detailed Factory Acceptance Test (FAT) protocols from potential equipment partners. Verifying mechanical and software performance before delivery saves immense time and frustration.
A: The standard industry range is typically 0.7 to 1.3 w/w. This exact ratio depends on the specific plasticizer used and the capsule's desired flexibility. Adjustments are strictly necessary when switching between different fill materials to maintain shell stability.
A: Plant-based alternatives often require higher processing temperatures and different hydration times compared to traditional animal-based gelatin. The tank's PLC and heating jackets must be capable of sustaining these higher thresholds safely without stressing the internal equipment.
A: It accurately measures trace residues in the final rinse water. This technology provides verifiable data proving the tank is completely clean. It prevents dangerous cross-contamination between batches and vastly simplifies strict regulatory compliance audits.
