In the manufacturing of softgel capsules, one of the most critical processes is drying. Softgel capsules, known for their smooth texture, ease of swallowing, and ability to encapsulate liquid-based formulations, require careful handling during the production process. After the softgels are encapsulated, they contain moisture that needs to be carefully removed to preserve their integrity, stability, and overall quality. Improper drying can lead to issues such as capsule deformation, leakage, or compromised active ingredients.
One of the most effective and widely used methods for drying softgel capsules is the softgel cage dryer. This system is designed to remove excess moisture efficiently and uniformly, ensuring that the softgels maintain their shape, firmness, and potency throughout the production process. In this article, we will dive deep into the softgel cage dryer process, its importance in the softgel manufacturing process, and how it contributes to superior capsule quality.

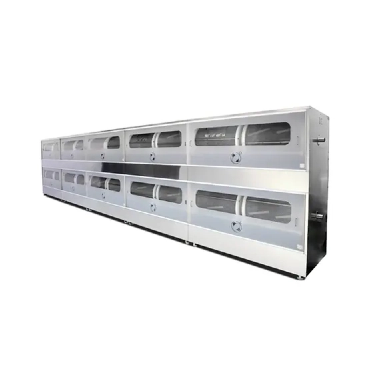

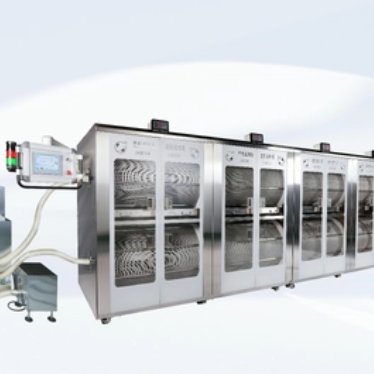

A softgel cage dryer is a specialized piece of equipment used in the drying phase of softgel capsule production. The machine works by placing newly encapsulated softgel capsules into a rotating drum or cage, where they are subjected to controlled heat, airflow, and moisture removal conditions. The goal is to uniformly dry the capsules without damaging them, ensuring that they are properly firmed and stabilized for further processing, packaging, and storage.
The cage dryer is often used after the softgels have been formed and sealed. At this point, the softgels contain a certain level of moisture, which needs to be reduced to achieve the desired physical properties. The dryer system ensures that the moisture is evenly removed, preventing any capsules from becoming too soft, sticky, or brittle.
The softgel cage dryer is designed to work under controlled environmental conditions, such as temperature, humidity, and airflow, to ensure uniform drying across all the capsules. By optimizing these parameters, the cage dryer helps to maintain the integrity of the softgel capsule’s shell while removing moisture efficiently.
The softgel cage dryer operates through a series of well-coordinated steps that work together to achieve effective drying without compromising the capsule’s structure. Here’s a breakdown of how the process works:
The first step in the softgel drying process is to load the newly formed softgel capsules into the cage or drying drum. These capsules are usually wet, as they contain residual moisture from the encapsulation process. The cage is a rotating drum or container that holds the capsules in place while they are subjected to drying conditions.
The capsules are placed inside the cage in a single layer or in multiple layers, depending on the design of the drying system.
The rotation of the cage ensures that the capsules are evenly distributed and receive uniform exposure to the drying conditions.
Once the capsules are loaded into the drying cage, controlled heat and airflow are applied. The cage dryer uses a combination of heated air and a regulated flow of air to promote moisture evaporation from the gelatin shell.
Temperature control: The temperature inside the cage is carefully monitored and maintained at a level that is high enough to promote moisture evaporation but low enough to prevent damage to the softgel capsules. Excessive heat can cause the gelatin to soften too much or even melt, while too little heat can result in inefficient drying.
Airflow regulation: The airflow inside the cage is also crucial to the drying process. The system ensures that air circulates evenly around the softgel capsules, helping to remove moisture from all sides of the capsules. Airflow needs to be steady and controlled to avoid uneven drying, which could lead to variations in capsule quality.
The cage’s rotating motion is essential for ensuring that each softgel capsule receives uniform exposure to the drying conditions. As the cage turns, the capsules tumble inside, allowing them to be evenly dried from all angles. This helps to prevent the formation of clumps or sticking capsules and ensures that moisture is removed uniformly across the entire batch.
Tumbling action: The rotation of the cage mimics a tumbling action, which is especially important for softgel capsules, as they are delicate and prone to sticking together. The tumbling ensures that the softgel capsules remain separated from each other, allowing for efficient airflow and uniform drying.
Prevention of clumping: Without this tumbling motion, the capsules could stick together, leading to uneven drying and the potential for defective capsules. The rotating cage ensures that this issue is avoided by allowing the capsules to move freely.
The primary purpose of the softgel cage dryer is to remove excess moisture from the softgel capsules. As the air circulates inside the dryer, moisture is drawn out of the capsules and evaporated. The system typically includes mechanisms to capture and exhaust the moisture-laden air, ensuring that the drying process is efficient and prevents the buildup of excess humidity inside the drying chamber.
Moisture reduction: The drying process gradually reduces the moisture content of the softgel capsules to an optimal level. Typically, softgel capsules should have a moisture content of around 5-8%, depending on the formulation. If the capsules retain too much moisture, they may become sticky or prone to mold growth, while over-drying can cause the capsules to become brittle.
Control systems: Most softgel cage dryers come with built-in control systems that monitor and adjust the temperature, airflow, and humidity inside the drying chamber to ensure optimal moisture removal. These systems may use sensors to track the progress of drying and adjust conditions as needed.
Once the desired moisture content is achieved, the drying process shifts to the cooling phase. The softgel capsules need to be cooled down to room temperature before they can be removed from the dryer and moved to the next stage in the production process. This step is crucial to ensure that the capsules do not become too brittle or crack due to rapid temperature changes.
Gentle cooling: The cooling phase is gradual, as rapid cooling can lead to thermal shock, which may cause the softgel capsules to break or crack. Softgel cage dryers are equipped with cooling mechanisms that gradually bring the temperature down in a controlled manner.
Once the softgel capsules have been dried and cooled, they are unloaded from the cage. At this point, the capsules are ready for inspection to ensure that they meet the required quality standards. The capsules are visually inspected for defects such as cracks, leaks, or deformation. This is an essential step before the softgels are moved to the packaging stage.
Inspection systems: Modern softgel cage dryers often integrate automated inspection systems that check for defects in the capsules as they are dried. These systems can detect issues such as size irregularities, shell defects, or incomplete drying, allowing manufacturers to remove defective capsules from the batch before packaging.
The use of softgel cage dryers in the production process offers a range of benefits that contribute to superior capsule quality and overall manufacturing efficiency:
The rotating action of the cage ensures that all softgel capsules receive equal exposure to drying conditions, preventing uneven drying. As a result, manufacturers can achieve consistent capsule quality across entire production batches. This uniformity is crucial in maintaining the integrity of the softgel shell and the potency of the encapsulated active ingredients.
By maintaining optimal moisture levels, softgel cage dryers ensure that the capsules remain strong and intact throughout the production process. Softgels that are properly dried have a lower risk of deformation, leakage, or cracking, ensuring that the capsules protect the active ingredients from contamination and degradation.
The softgel cage dryer’s automated processes, including controlled temperature, airflow, and rotation, enable higher production throughput. The dryer can handle large volumes of softgel capsules, reducing manual labor and increasing efficiency. The ability to dry capsules quickly and uniformly contributes to faster production cycles and a more efficient manufacturing line.
Softgel cage dryers are often designed with energy-efficient technologies that help manufacturers reduce operating costs. By optimizing airflow and temperature control, these systems can achieve effective drying with minimal energy consumption, making them a cost-effective choice for large-scale softgel production.
The softgel cage dryer is essential in the softgel manufacturing process, ensuring capsule integrity, maintaining high product quality, and improving production efficiency. By providing consistent drying conditions, controlling moisture content, and enhancing throughput, it helps achieve the required standards for firmness, appearance, and potency.
For manufacturers aiming to optimize production, investing in a high-quality softgel cage dryer is key to improving both product quality and operational efficiency. As the softgel market grows, advanced drying technology becomes crucial to staying competitive and meeting consumer demand for high-quality products. Beijing Sinagel Technology Development Co., Ltd. offers innovative softgel cage dryers that maximize efficiency and support manufacturers in the supplement industry.
