Understanding The Technology Behind Gelatin Melting Systems

In the world of pharmaceutical and dietary supplement manufacturing, softgel capsules are widely used for delivering active ingredients in a convenient, easy-to-consume form. These capsules are highly effective in ensuring the precise dosage of vitamins, minerals, and medications, and are often preferred for their ability to mask unpleasant tastes or odors. At the heart of softgel manufacturing lies gelatin, which forms the outer shell of these capsules. However, before gelatin can be used to create softgel capsules, it must undergo a meticulous process of melting and preparation. This is where gelatin melting systems come into play.

Gelatin melting systems are specialized pieces of equipment designed to melt, mix, and prepare gelatin at precise temperatures and consistencies. These systems are critical to the softgel production process, as the quality of the gelatin affects the final product's appearance, texture, and stability. In this article, we will explore the technology behind gelatin melting systems, how they work, and the key components that make them indispensable in softgel manufacturing.

What is a Gelatin Melting System?

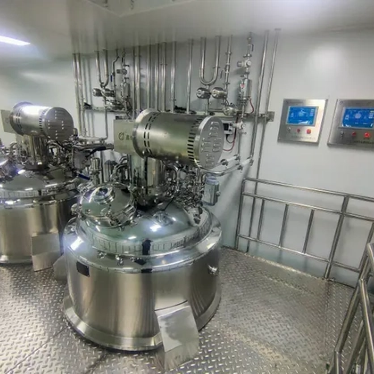

A gelatin melting system is a mechanical device used to heat and liquefy gelatin, preparing it for use in softgel capsule production. Gelatin, typically derived from animal collagen, must be melted to a specific temperature to achieve the right viscosity and consistency for softgel molding. The melting system must ensure that the gelatin is uniformly heated and blended, with precise temperature control to avoid degradation or inconsistencies in the final product.

These systems are designed to melt gelatin in large quantities while maintaining control over several critical parameters. These include:

• Temperature: Ensuring that the gelatin reaches and maintains the correct temperature range (typically between 60°C and 70°C) without overheating or cooling too rapidly.

• Viscosity: Gelatin must be melted to a certain viscosity, which affects the ability of the gelatin to flow into the molds and form capsules with the correct texture and thickness.

• Homogeneity: The system must mix the gelatin thoroughly, ensuring an even distribution of the gelatin without any clumps or inconsistencies.

Overall, a gelatin melting system must ensure that the gelatin is processed in a way that preserves its functional properties and results in high-quality softgel capsules.

Key Technologies Behind Gelatin Melting Systems

Several technologies work in tandem within gelatin melting systems to ensure that the gelatin is melted and processed correctly. These technologies include temperature control, mixing mechanisms, and pumps or transfer systems. Let’s take a closer look at how each of these elements functions within the system.

1. Temperature Control

Temperature control is the most critical factor in gelatin melting. Gelatin is a sensitive material that can degrade or lose its effectiveness if exposed to excessive heat. Therefore, it is essential to heat the gelatin at a controlled, steady rate to achieve the desired consistency without overheating it.

Gelatin melting systems use sophisticated temperature control mechanisms, typically in the form of thermostats or temperature sensors, to monitor the gelatin’s temperature throughout the melting process. These systems are equipped with heating elements, such as steam coils or electric heaters, which gradually raise the temperature of the gelatin mixture. The key is to avoid temperature fluctuations, as they can lead to inconsistent melting or damage the gelatin’s structure.

Advanced gelatin melting systems often have digital controls that allow operators to set precise temperature targets. These systems are capable of maintaining the temperature within a narrow range to ensure optimal melting and avoid overheating.

2. Mixing Mechanisms

Once gelatin is heated, it must be thoroughly mixed to ensure uniformity. Inconsistent mixing can lead to lumps, bubbles, or uneven distribution of gelatin, which can affect the quality and appearance of the softgel capsules. The mixing process also helps dissolve any remaining solid gelatin pieces into the liquid mixture.

Gelatin melting systems feature powerful mixing mechanisms designed to ensure that the gelatin is consistently blended throughout the melting process. These mixers may include mechanical agitators, propellers, or paddle blades that rotate within the gelatin tank. The mixers are designed to prevent the formation of clumps, ensuring that the gelatin is evenly distributed and has a smooth texture.

Some systems also employ high-shear mixers, which generate intense mechanical energy to break down any large particles or undissolved chunks of gelatin. These mixers ensure that the gelatin is completely liquefied and homogenized, resulting in a smooth, even mixture.

3. Heat Transfer Systems

Efficient heat transfer is essential to the proper melting of gelatin. In a gelatin melting system, heat must be evenly distributed to ensure that the entire gelatin mass reaches the desired temperature without any hot spots. This can be achieved through various heat transfer methods, such as steam-based or electric heating.

Steam-based systems use steam to heat the gelatin in a controlled manner. Steam is a highly effective method of transferring heat, as it can quickly and evenly raise the temperature of the gelatin mixture. The steam passes through coils or jackets surrounding the gelatin tank, which gradually raises the temperature of the mixture inside.

Electric heating systems, on the other hand, use electrical resistance to generate heat. Electric heaters are placed inside or around the gelatin tank, and the heat is transferred directly to the gelatin. While this method may take a little longer than steam-based systems, it is still effective in providing precise temperature control.

4. Pump and Transfer Systems

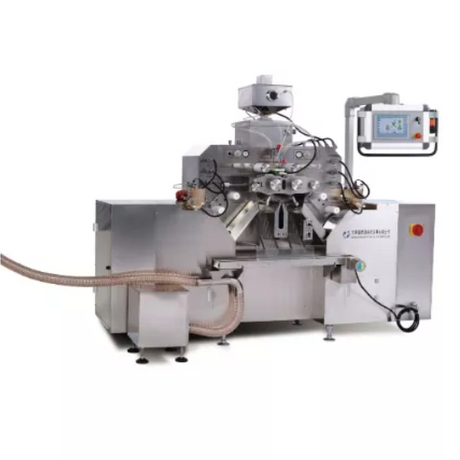

Once the gelatin is melted and properly mixed, it must be transferred to the next stage of the softgel production process. Gelatin melting systems are equipped with pumps or transfer systems designed to move the gelatin efficiently from the melting tank to the softgel encapsulation machines.

These pumps must be designed to handle the specific viscosity of the gelatin mixture. Since gelatin can be quite thick, pumps with high flow capacity and the ability to handle viscous liquids are necessary. Transfer systems also need to be capable of moving the gelatin without introducing air or bubbles, as these could affect the final product’s quality.

Modern gelatin melting systems often include advanced transfer mechanisms such as peristaltic pumps or diaphragm pumps, which are well-suited for pumping viscous liquids like molten gelatin. These pumps are designed to operate gently, avoiding any damage to the gelatin mixture while maintaining a steady flow rate.

5. Automation and Control Systems

Automation is a key feature of modern gelatin melting systems. These systems allow manufacturers to control and monitor the gelatin melting process remotely, improving efficiency and minimizing the risk of human error. Automation ensures that the temperature, mixing speed, and transfer of gelatin are all optimized for consistent production.

Many gelatin melting systems now include programmable logic controllers (PLCs) and advanced software interfaces, which allow operators to set parameters such as temperature, mixing speed, and flow rate. The software also provides real-time monitoring and feedback, alerting operators to any potential issues with the system.

In addition, automated systems often include data logging features, which record key performance metrics such as temperature and viscosity throughout the production process. This data can be analyzed to identify trends, optimize performance, and ensure that each batch of gelatin meets the required specifications.

The Benefits of Gelatin Melting Systems

The technology behind gelatin melting systems offers a range of benefits to softgel manufacturers. These benefits include:

• Consistency and Quality Control: The precise control over temperature and mixing ensures that the gelatin is always melted to the correct consistency, resulting in uniform softgel capsules with a consistent texture and appearance.

• Efficiency: Automation and advanced temperature control reduce the need for manual intervention, speeding up the production process and minimizing downtime.

• Reduced Waste: By controlling the melting and mixing process, gelatin melting systems reduce the risk of gelatin waste and ensure that every batch is usable.

• Improved Product Stability: The controlled melting process prevents gelatin degradation, ensuring the stability and shelf life of the final product.

• Scalability: Advanced gelatin melting systems can be scaled to accommodate larger production volumes, making them ideal for both small and large-scale manufacturing.

Conclusion

Gelatin melting systems are a crucial part of the softgel manufacturing process, ensuring that gelatin is melted, mixed, and transferred with precision. The technology behind these systems, including temperature control, mixing mechanisms, heat transfer, and automation, guarantees that the gelatin mixture is consistent, high-quality, and suitable for capsule formation. As demand for softgel products continues to rise, understanding the technology behind gelatin melting systems will be essential for manufacturers looking to improve production efficiency, reduce waste, and maintain high-quality standards in their products. By investing in advanced gelatin melting technology, manufacturers can enhance their production capabilities and stay competitive in the growing pharmaceutical and dietary supplement markets.
