Views: 0 Author: Site Editor Publish Time: 2026-05-18 Origin: Site

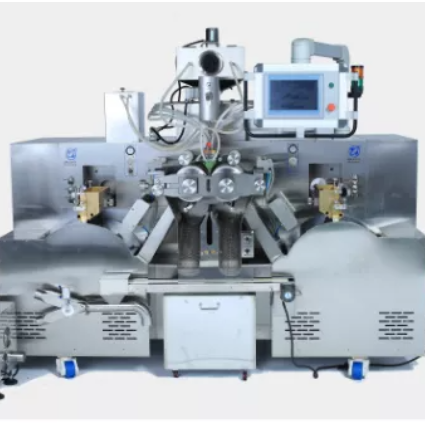

In 1930, Robert Pauli Scherer invented the rotary die method. This breakthrough changed pharmaceutical manufacturing forever. Today, this legacy evolves through modern PLC-driven digital technology. A softgel encapsulator serves as the central unit in this process. It simultaneously forms, fills, and hermetically seals liquid or semi-solid doses into gelatin or plant-based shells.
Why does this matter? Production managers and CDMOs constantly evaluate equipment to maximize yield and ensure stringent compliance. Understanding these underlying mechanics is critical for your success. You must accurately assess machine performance, viable output rates, and overall efficiency. In this article, we explore the core anatomy of these machines. You will learn how the encapsulation process unfolds step-by-step. We also cover facility prerequisites, complex dosage versatility, and digital upgrade strategies to optimize your production floor.
The Rotary Die Standard: The rotary die method remains the industry gold standard, seamlessly integrating ribbon formation, precision pumping, and hermetic sealing.
Environmental Dependency: Machine performance is heavily bottlenecked by facility conditions; exact temperature (21–24°C) and humidity (30–35% RH) control is non-negotiable.
Digital Scalability: Upgrading to an automatic softgel machine with PLC controls and electronic gear synchronization reduces filling variance to <2% and pushes viable yields above 98%.
Advanced Formulations: Modern machines must accommodate varied formulations, from standard animal gelatin to high-viscosity plant-based alternatives and <100nm micro-emulsified fills.
You must evaluate hardware carefully before purchasing. Entry-level components differ greatly from high-performance parts. A quality softgel encapsulation machine relies on several precise mechanisms. We will deconstruct these core components to show you exactly what matters most during evaluation.
Component | Primary Function | Buyer Evaluation Focus |
|---|---|---|
Casting Drums | Cools liquid gelatin into a continuous, uniform ribbon. | Precision chilling controls. Uneven thickness leads to catastrophic downstream failure. |
Injection Pump | Delivers exact API doses into the forming shell. | Advanced linear driving mechanisms. They guarantee volume error rates below 2%. |
The Wedge | Heats the gelatin ribbons before the dies press them together. | Highly tunable temperature controls. Plant gelatin needs 46–57°C; animal gelatin needs 35–45°C. |
Rotary Dies | Cuts and seals the dual ribbons into the 3D capsule shape. | Aviation-grade alloys machined with CNC. Ensures a seam thickness of at least 20% of the total shell. |
These rotating cylinders cool liquid gelatin into a continuous, uniform ribbon. You should look closely for precision chilling controls. Uneven thickness here causes catastrophic failure downstream. If the drum temperature fluctuates, the resulting ribbon will stretch unevenly. This compromises the entire batch.
The pump delivers the exact dose of active pharmaceutical ingredients (API) into the forming shell. High-end machines utilize advanced linear driving mechanisms. They guarantee filling volume error rates remain below 2%. Precision here prevents costly API waste and ensures strict regulatory compliance.
This component heats the gelatin ribbons right before the dies press them together. You must demand highly tunable temperature controls. You can choose between water bath or electric heating systems. Plant-based gelatin requires 46–57°C to fuse properly. Traditional animal gelatin needs only 35–45°C.
The dies cut and seal the dual ribbons into the final 3D capsule shape. Assess the material quality rigorously. Vendors should use aviation-grade alloys machined with high-precision CNC. This ensures longevity and prevents mechanical misalignment. It also guarantees a seam thickness of at least 20% of the total shell. Weak seams cause immediate leaks.
Understanding operational realities requires a physical walk-through. The encapsulation process follows a strict chronology. We break down the exact physical steps your materials undergo during production.
Gelatin Melting & Material Preparation: Operators melt the gelatin at approximately 70°C. They hold it in service tanks near 50°C. You must strictly monitor target moisture content (45–47%) and viscosity. This occurs prior to feeding the machine. Minor deviations here ruin the entire run.
Ribbon Formation & Micro-Lubrication: Liquid gelatin flows onto the casting drums. It forms two distinct ribbons. Implement micro-lubrication systems during this phase. Apply precise amounts of MCT or light mineral oil. Advanced setups use specific plant oils. They achieve a "wash-free" capsule process. This vastly reduces downstream operational efforts.
Filling and Sealing (The Rotary Die Action): The two ribbons converge at the wedge. The wedge heats them. The injection pump forces the liquid fill between them. This rapidly expands the ribbons into the die cavities. The rotary dies instantly cut and seal the dual ribbons together.
Shaping, Cooling, and Primary Drying: Freshly sealed capsules are highly malleable. Operators route them immediately to a tumble dryer. They shed initial moisture and stabilize their shell shape here. Finally, operators transfer them to drying tunnels for final curing.
Do not rush the gelatin melting phase. Proper hydration requires time and strict vacuum deaeration. Bubbles in your gelatin mass will cause weak spots in the final capsule shell. We also recommend daily calibration checks on your micro-lubrication system to prevent excessive oil buildup.
Environmental realities can easily make or break machine performance. Even a premium encapsulator cannot compensate for poor facility conditions. You must prepare your building infrastructure carefully before installation.
Your facility HVAC system carries a massive operational burden. The encapsulation room must maintain temperatures between 21–24°C (70–75°F). You must hold relative humidity exactly at 30–35%. Deviate from this, and your gelatin ribbons will melt or turn brittle. Cooling and drying rooms require even stricter humidity controls. You need 20–25% RH to cure the shells properly without warping them.
You must recover the "gelatin net." This refers to the waste ribbon left after the dies cut the capsules. Properly integrated systems recycle 60–80% of this mesh. This recovery stands as a critical factor for long-term material efficiency. Discarding this net destroys your material yield margins quickly. Modern facilities use closed-loop color-matching systems to blend recycled mesh seamlessly back into virgin gelatin batches.
Your equipment must handle tomorrow's formulation trends. Complex dosages demand high machine versatility. Purchasing single-purpose equipment severely limits your future market responsiveness.
The consumer market increasingly favors vegan options. Machines must handle higher viscosities smoothly. They also require elevated sealing temperatures compared to animal gelatin. The wedge must sustain higher heat without scorching the delicate plant polymers. Ensure your machine specifies plant-based compatibility directly in its technical documentation.
Ensure your pump and agitation systems handle various liquid types efficiently. These include solid-liquid suspensions and water-soluble contents. You also see emulsified softgels today. They form microemulsions under 100nm in the gastrointestinal tract. This enhances API bioavailability significantly. Ask vendors for rigorous validation data. Check their enteric-coated or fast-dissolving capsule compatibilities. An inflexible pump system will clog instantly when handling heavy suspensions.
Legacy mechanical setups pose significant daily problems. You must understand the transition from mechanical linkages to digital automation. This transition separates modern production from outdated methods.
Older machines rely entirely on physical gears and mechanical linkages. They suffer from mechanical misalignment over time. This causes high defect rates and weak capsule seals. You also face extended downtime during changeovers. Mechanics must manually adjust timings, which wastes entire shifts.
An automatic softgel machine relies on Programmable Logic Controllers (PLC). Modern systems use intuitive touchscreen HMIs. They electronically synchronize the pump stroke, casting drums, and rotary dies. You change timings via a screen tap instead of a wrench.
Consider the immediate business outcomes. Digital integration eliminates mechanical drift entirely. You achieve viable yields greater than 98%. The setup supports high-speed continuous production effortlessly. Some units easily exceed 500,000 capsules per hour. They also ensure strict GMP compliance. You get precise, auditable data logging from every batch automatically.
Honest discussions about failure points build operational confidence. Quality equipment mitigates these daily risks effectively. We outline the most frequent production hurdles below.
Troubleshooting Summary Chart
Issue | Primary Cause | Equipment Solution |
|---|---|---|
Uneven Ribbon Thickness | Improper drum cooling or mechanical misalignment. | Automated micrometer calibrations and variable chilling controls. |
Weak Seals / Leaking | Wedge temperature drops or die misalignment. | Highly responsive PID temperature controllers and CNC-machined dies. |
Capsule Adhesion (Clumping) | Over-lubrication of the ribbon. | Targeted, micro-lubrication delivery systems. |
Improper drum cooling or mechanical misalignment causes this issue. If one side of the ribbon is thinner, the capsules will rupture during expansion. High-end machines mitigate this using automated micrometer calibrations. They adjust the spreader box gaps dynamically to maintain perfect uniformity.
Wedge temperature drops or die misalignment trigger catastrophic leaks. If the wedge cannot maintain target heat, the gelatin will not fuse. Highly responsive PID temperature controllers solve this by reacting to micro-fluctuations instantly. Precision CNC-machined dies also prevent mechanical misalignment during high-speed runs.
Over-lubrication typically causes clumping. Operators drench the ribbons in oil to prevent sticking, but this creates a messy, sticky final product. You fix this by upgrading your hardware. Use targeted, micro-lubrication delivery systems. They apply exactly enough oil to prevent die sticking without leaving excess residue.
A soft capsule machine is far more than a simple mechanical press. It operates as an integrated ecosystem. It requires precise thermal, volumetric, and environmental harmony to function correctly.
When you evaluate vendors, apply this strict shortlisting logic:
Demand fill volume accuracy below 2%.
Require full digital synchronization capabilities via modern PLCs.
Ensure thermal compatibility with high-viscosity plant gelatins.
Verify micro-lubrication systems for potential wash-free operations.
Do not guess on equipment investments. We encourage technical consultations directly with the manufacturer. Request a pilot test run to validate your API viscosity and formulation behaviors on the target machine before committing.
A: Encapsulation rooms generally require 21–24°C (70–75°F) and 30–35% RH. Drying areas need even lower humidity (20–25% RH) to cure the shells properly.
A: Yes, but only if the machine has a robust heating system. Plant-based gelatins are highly viscous and require the wedge to reach 46–57°C, compared to the 35–45°C needed for standard animal gelatin.
A: It refers to a process utilizing an ultra-precise micro-lubrication system (often using specific plant oils) that eliminates the need for a secondary solvent-washing step to clean the finished capsules, drastically reducing OPEX and environmental footprint.
A: Leaks are usually caused by a cold wedge preventing proper ribbon fusion or misaligned rotary dies. Ensuring exact electronic synchronization via PLC and recalibrating wedge temperatures typically resolves the issue.
