How Does a Softgel Production Line Work Step by Step?

Transitioning to in-house softgel manufacturing—or upgrading legacy equipment—is a significant capital expenditure. Success heavily depends on maximizing yield and minimizing active pharmaceutical ingredient (API) waste. Many facilities underestimate the complex variables involved in modern encapsulation. Beyond basic mechanics, scaling a reliable softgel production line requires precise control over thermodynamics, fluid dynamics, and environmental conditions. Even minor temperature fluctuations can ruin an entire batch. Facility managers face constant pressure to maintain high throughput without compromising shell integrity or dosing accuracy.

This guide breaks down the end-to-end operational workflow. It highlights exactly where production bottlenecks occur during everyday runs. You will learn how to evaluate machinery for commercial viability and strict cGMP compliance. We explore actionable strategies to streamline changeovers and optimize your facility layout. By the end, you will understand how each phase connects to drive reliable, scalable output.

Key Takeaways

• A fully operational softgel manufacturing system requires synchronized phases: gelatin preparation, fill formulation, encapsulation, and curing.

• The encapsulation machine (rotary die) is the heart of the line, but drying infrastructure is typically the primary constraint on throughput.

• Evaluating a turnkey production solution requires auditing changeover times, tooling flexibility, and cleaning validation protocols.

• ROI is dictated by machine fill accuracy; even a 2% variance can result in massive API financial losses over a fiscal year.

The Business Economics of a Soft Capsule Production Line

To start, facility leaders must balance throughput capacity against strict pharmaceutical compliance. You cannot sacrifice product quality for operational speed. Operating a soft capsule production line involves tight profit margins. These financial margins depend heavily on continuous machine uptime. Success requires exceedingly high yield rates. You must also maintain remarkably low rejection metrics. Rejections typically appear as leakers, twins, or misshaped capsules. Every single defective unit wastes expensive raw materials. Over a fiscal year, these small losses compound into massive financial deficits. You must minimize downtime between batch changeovers to protect profitability.

Implementation reality often falls short of initial expectations. Facilities sometimes piece together disparate equipment from various unsupported vendors. This fragmented approach usually leads to systemic integration failures. It creates frustrating data silos across the plant floor. Operators struggle to monitor the entire workflow effectively. A holistic approach proves much more successful. You must treat the surrounding production environment as part of the machinery itself. Elements like HVAC systems and ambient humidity control remain absolutely critical. They directly influence the chemical behavior of gelatin. If your room temperature drifts unexpectedly, your ribbons will lose tensile strength.

Establishing clear success criteria helps guide your engineering choices. High-performing facilities measure success through overall equipment effectiveness (OEE). OEE calculates availability, performance, and quality simultaneously. By tracking these metrics, you uncover hidden inefficiencies in your daily processes. A well-designed system minimizes human intervention. It reduces the risk of contamination and standardizes output quality.

Phase 1: Gelatin Melting and Fill Material Preparation

Preparation sets the physical foundation for the entire batch. If operators mishandle this initial phase, downstream encapsulation will inevitably fail. You must manage two distinct production streams simultaneously: the shell and the core. Both streams demand rigorous thermal and mechanical control.

Gelatin Preparation (The Shell)

The shell formulation requires melting raw gelatin powder. Operators mix this fine powder using purified water and specific plasticizers. Glycerin and sorbitol are common plasticizer choices. This chemical reaction happens inside a heated, jacketed mixing tank. The tank typically operates between 60°C and 80°C. Precision is vital during this thermal cycle.

• Evaluation Criteria: You must prioritize high-grade vacuum deaeration capabilities. The aggressive melting process traps microscopic air bubbles inside the gelatin mass. These bubbles cause critical weak points in the final capsule shell. They lead directly to leakers. A robust vacuum system removes these bubbles entirely before casting.

• Viscosity Management: You need precise viscosity control. The gelatin mass must remain fluid enough to pump efficiently. Yet, it must stay thick enough to form a highly stable ribbon later. Advanced mixing tanks feature automated viscosity sensors to ensure batch consistency.

Fill Material Formulation (The Core)

The core holds your valuable active pharmaceutical ingredients. Fill materials usually consist of pure oils, complex suspensions, or thick paste formulations. Each type requires specific handling protocols to ensure accurate dosing.

• Implementation Risk: Poorly milled suspensions pose a massive operational threat. Unmilled large particles will quickly clog the tiny injection wedges during encapsulation. You must ensure your mechanical milling equipment performs flawlessly.

• Homogenization Requirements: High-shear mixers prevent premature sedimentation of active ingredients. Homogenization tanks must perfectly match the exact viscosity profile of your intended fill. Inconsistent viscosity leads to wildly inaccurate dosing. This inconsistency violates strict regulatory standards.

Let's summarize the preparation phase requirements in a technical breakdown to highlight critical control parameters.

Phase 2: The Rotary Die Encapsulation Process

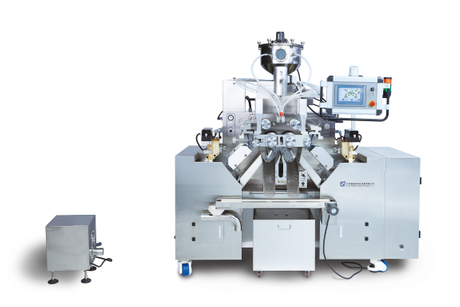

This phase represents the mechanical heart of your operation. The rotary die process transforms raw materials into finished capsules. Liquid gelatin flows out of heated spreader boxes. It casts onto highly controlled, chilled cooling drums. These drums rapidly cool the liquid to form two continuous solid ribbons. Operators carefully monitor ribbon thickness, usually aiming for 0.7mm to 0.9mm. These ribbons then feed downward into two counter-rotating die rollers.

As the ribbons meet, a positive displacement pump activates. It injects the exact dose of fill material precisely between them. The die rollers simultaneously cut and hermetically seal the capsule. The sealed capsules drop onto a conveyor while the remaining gelatin netting goes to a recycling bin.

When evaluating equipment, you must deeply assess several technical dimensions:

• Fill Accuracy: Always look for micro-dosing pump precision. This feature is absolutely critical for high-value pharmaceutical production. Even minor deviations create out-of-spec batches. Plunger strokes must deliver exact volumes regardless of fluid resistance. High-quality pumps utilize ceramic or hardened steel plungers to prevent long-term wear.

• Temperature Control: The injection wedge sits directly between the die rollers. It must maintain precise heat to ensure a secure seam. However, excessive heat will degrade sensitive APIs. You need highly responsive thermal sensors embedded directly into the wedge matrix.

• Tooling Changeover: Assess the mechanical complexity of swapping die rolls. Different capsule shapes and sizes require specific tooling. Quick-align tooling directly impacts your operational uptime. Standardized alignment mechanisms prevent operator error during reassembly. They eliminate tedious manual calibration steps.

Operators must carefully monitor ribbon lubrication during this phase. Food-grade mineral oil prevents the gelatin from sticking to the die rollers. However, applying too much oil complicates the downstream cleaning process. Precision micro-lubrication systems offer the best balance. They apply just enough oil to ensure smooth cutting without soaking the capsules.

Phase 3: Drying, Inspection, and Post-Processing

After encapsulation, the capsules are structurally complete but extremely fragile. They contain too much moisture. They remain highly susceptible to physical damage. Post-processing stabilizes the shell and guarantees visual perfection for the end consumer.

Tumble Drying (Initial Curing)

Freshly encapsulated softgels fall directly onto transport conveyors. They immediately enter a series of rotary tumble dryers. This rapid movement prevents the damp capsules from sticking together. The tumbling action removes roughly 20-30% of the moisture right away. Blower fans push conditioned air through the tumbling baskets. This initial curing step effectively prevents structural deformation as the capsules settle.

Drying Tunnels (Deep Curing)

Next, operators transfer the capsules to shallow drying trays. They stack these trays on racks and move them into environmentally controlled drying rooms. These rooms require exceptionally low relative humidity, typically around 15% to 20%. The temperature usually remains around 20°C to 24°C. The deep curing process lasts anywhere from 24 to 72 hours.

Bottleneck Warning: Drying is almost always the most time-consuming phase. It dictates your true maximum throughput. Your facility footprint and HVAC capacity must scale alongside your encapsulation output. Under-sizing your drying rooms will force you to halt the encapsulation machine while waiting for tray space.

Inspection & Polishing

Once dry, the capsules move to quality control. Automated optical inspection (AOI) systems scan every single unit at high speeds. They separate defective capsules based on size, color, and shape anomalies. AOI eliminates the unreliability of manual visual inspections. Finally, polishing stations wipe the shells clean. Cloth-lined drums remove any residual mineral oil applied during the encapsulation process. The resulting capsules feature a brilliant, glossy finish ready for final packaging.

Sourcing a Turnkey Production Solution: ROI & Evaluation Criteria

Purchasing fragmented equipment introduces severe operational risks. Implementing a comprehensive turnkey production solution streamlines validation and accelerates your time-to-market. When vetting suppliers, you must look beyond the initial purchase order.

CapEx vs. OpEx

Initial machine costs represent just one financial metric. You must carefully weigh capital expenditure against long-term operational expenses. Evaluate ongoing energy consumption and spare parts availability. Consider the daily labor requirements needed to run the machines. High-efficiency systems often offset their initial price tag through reduced energy use. A machine that wastes less gelatin saves thousands of dollars monthly.

System Integration & Automation

A highly effective manufacturing setup provides deep automation. It should offer unified PLC (Programmable Logic Controller) interfaces. This connectivity allows operators to monitor critical data from a single dashboard. They can track mixing tank temperatures, micro-dosing pump speeds, and drum cooling metrics simultaneously. Centralized data collection simplifies batch reporting.

Security & Compliance Protocols

Pharmaceutical regulatory bodies demand flawless hygiene and strict data integrity. You must evaluate equipment against rigorous industry standards.

1. Material Grades: Ensure all product-contact surfaces utilize 316L stainless steel. This grade remains strictly FDA and cGMP compliant. It resists corrosion from acidic active ingredients.

2. Data Integrity: Audit the operational software thoroughly. It must meet strict 21 CFR Part 11 compliance standards. You need immutable audit trails and secure electronic signatures. Operators must use unique login credentials.

3. Cleaning Validation: Look for integrated Clean-in-Place (CIP) systems. Automated cleaning cycles guarantee reproducible hygiene standards. They also dramatically reduce changeover times between different product runs.

Vendor Support & Factory Acceptance Testing (FAT)

Never accept delivery without rigorous testing. Require a comprehensive FAT protocol at the vendor site before shipping. You must use your specific formulation materials during this test. Generic test runs will not reveal the actual performance limits of your unique paste or suspension. Furthermore, secure detailed IQ/OQ/PQ validation documents. These documents prove the equipment performs exactly as specified under commercial loads.

Conclusion

Operating a high-yield encapsulation line requires harmonizing precise mechanical engineering with strict environmental controls. Success relies on viewing the entire production floor as a single interconnected system. Every phase, from gelatin melting to deep tunnel curing, impacts your final product quality. To ensure long-term profitability, adhere to the following action steps:

• Prioritize vendor partnerships that deliver comprehensive validation documentation, including IQ, OQ, and PQ packages.

• Demand transparent FAT protocols run exclusively with your specific API formulations.

• Consult your internal engineering teams to map out facility HVAC capabilities accurately.

• Audit your existing floor plan to accommodate expansive drying tunnel infrastructure before purchasing hardware.

• Standardize changeover procedures using quick-align tooling to maximize weekly production schedules.

By implementing these strategies, you will drastically reduce material waste and achieve superior batch consistency.

FAQ

Q: How long does a complete batch take on a standard softgel production line?

A: While the mechanical encapsulation process takes only hours, the total batch timeline spans three to five days. The duration depends heavily on your specific gelatin formula and ambient humidity levels. Preparation and blending require careful heating. Deep curing inside the drying tunnels consumes the vast majority of this production window.

Q: What is the minimum facility footprint required for a turnkey production solution?

A: The main encapsulation machine remains relatively compact. However, you need substantial, dedicated square footage for the supporting infrastructure. Preparation tanks, tumble dryers, and multi-rack drying tunnels demand significant space. You must also allocate room for climate-controlled HVAC systems that manage the strict environmental requirements of the drying rooms.

Q: How do we prevent API loss during the softgel encapsulation process?

A: Preventing active ingredient waste starts with highly precise positive displacement pumps. You must ensure proper suspension milling to avoid clogged injection wedges. Additionally, well-trained operators minimize material loss by reducing start-up and calibration times during the initial ribbon threading phase. Fast tooling changeovers further protect your valuable batches.
